Product Pictures:

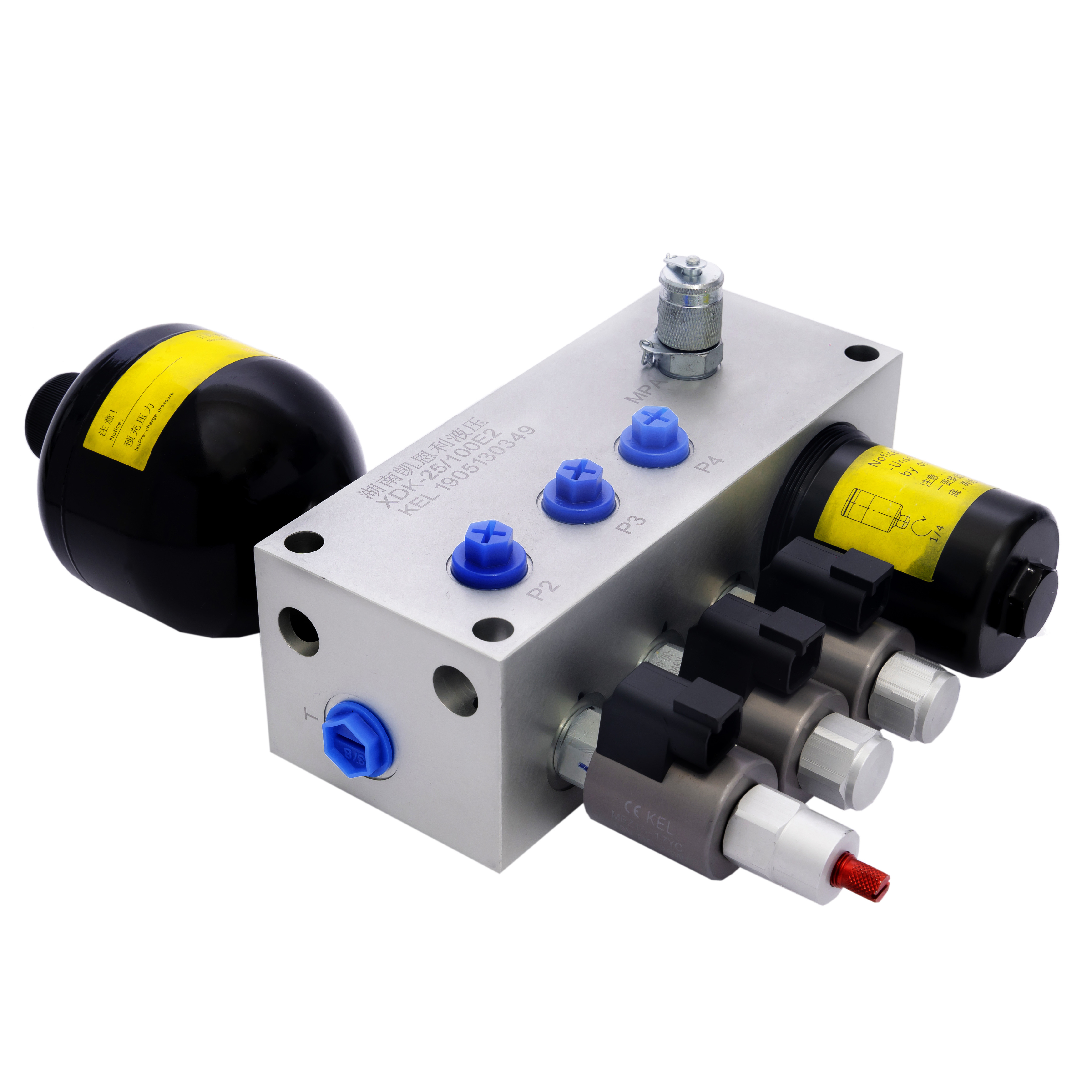

Pilot oil supply unit with diphragm accumulator steel or aulumium valve manifolds
A pilot oil supply kit, also known as a pilot oil control kit or pilot oil system, is a set of components used to provide hydraulic pressure and control signals for operating pilot-controlled valves or actuators in a hydraulic system. It is commonly used in applications where precise control and remote operation of valves or actuators are required.
Description :
A valve that provides a reduced pressure supply from the main hydraulic system suitable for pilot hydraulic operation. Accumulator and electric isolation valves are available as options. Hydraulic supply units, Accumulators and recharge kits, Filters and EEPROM programmer for PWM controls.
Input pressure P min 8 bar, max 350 bar
Output pressure S (nominal) 30 bar
Max pressure on drain port T 3 bar
Relief valve setting (nominal) 45 bar
Max accumulator pressure 210 bar (Nitrogen pre-charge 13 bar)
Flow capacity at port S 5 l/min without accumulator up to 40 l/min with accumulator
Some reference drawing oil pilot oil supply manifolds:
Sample 1
Sample 2
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
