Product Pictures:
Description :

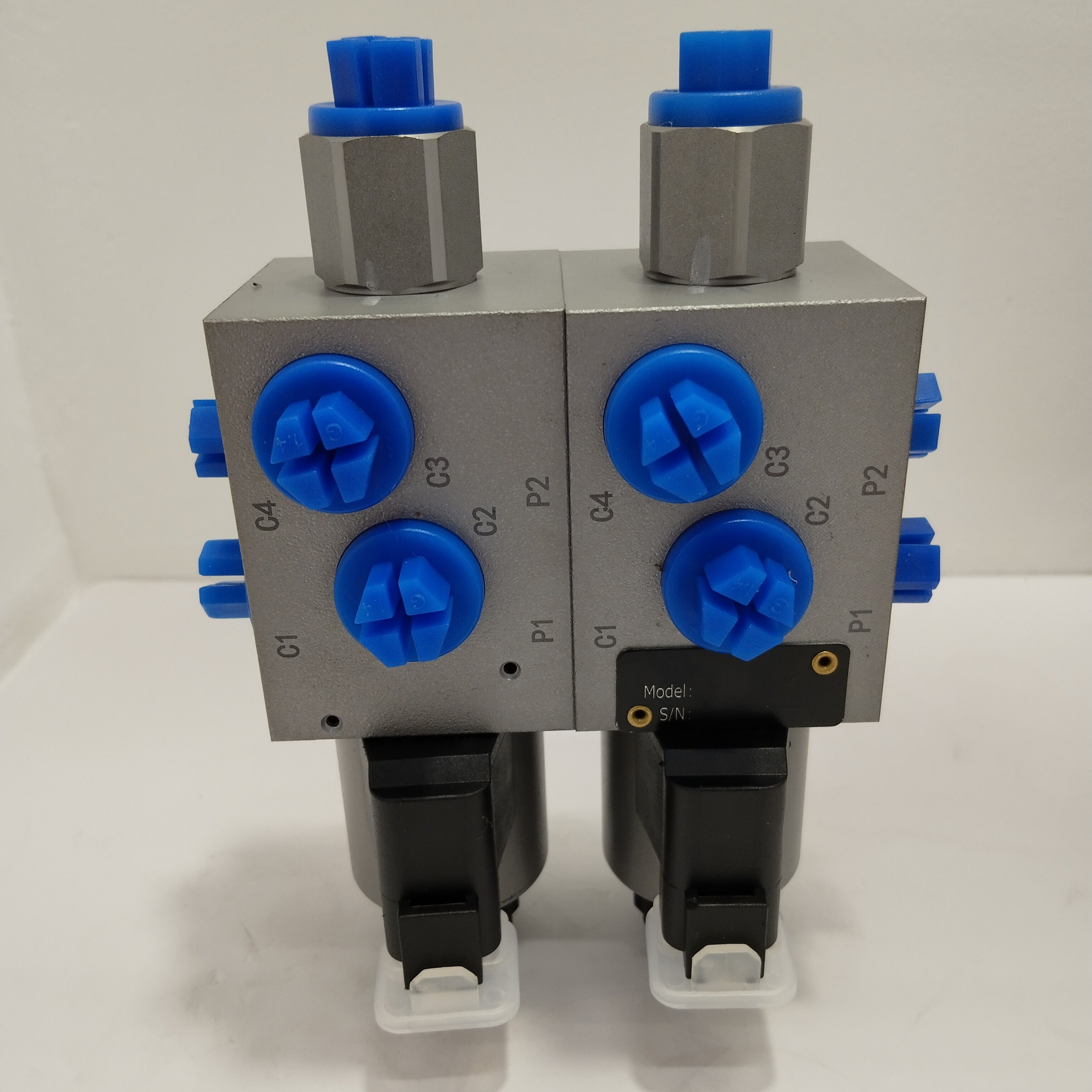

KDFE100-7A-13ER two bank 6 way 2 position solenoid valve with double valve body hydraulic solenoid valve
Technical Parameters:
1. Rated pressure: 315Bar, rated flow: 100L/min;
2. Solenoid valve voltage: DC27V±15%, socket type: DT04-2P, waterproof level: IP69K, solenoid power: 36W;
3. Operating temperature range: -20℃-+90℃;
4. Use cleanliness range: within NAS9 level;
5. T port:G1/4 DIN3852,
Other oil port: G1/2 DIN3852;
6. The surface of the valve body is zinc-nickel alloy plated.
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
