OEM Solenoid Excavator Pilot Valve Hydraulic Pilot Oil Supply Manifolds For Large Manufacturing

Product Pictures:

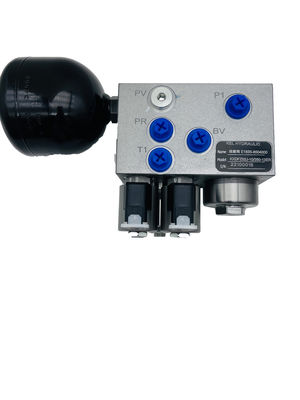

Hydraulic excavator pilot valve with diaphragm oil resource valve based on steel or aluminium valve body

The pilot oil supply kit is designed to work in conjunction with the main hydraulic power system of the equipment or machinery. It enables the remote control, precise operation, and coordination of pilot-controlled valves or actuators by providing the necessary hydraulic pressure and control signals. The kit's configuration and components may vary depending on the specific application and system requirements.

1. Hydraulic pilot control valves Walvoil’s complete line of hydraulic pilot controls can be used in all application sectors: joysticks for mini-excavators and fork lifts, sectional valves for overhead platform and pedals for large excavators.
2.

3. Pressure Relief Valve: A pressure relief valve is typically included to protect the pilot oil system from excessive pressure. It opens when the pressure exceeds a certain threshold, allowing the excess pressure to be relieved.

4.

5. Pressure Regulator: A pressure regulator is used to control and adjust the pressure of the pilot oil supply. It helps maintain a consistent and desired pressure level for proper operation of the pilot-controlled valves or actuators.

6.

7. Control Valves: Control valves in the pilot oil supply kit regulate the flow and direction of the hydraulic oil. These valves are typically operated electrically, pneumatically, or hydraulically and are used to control the actuation of the pilot-controlled valves or actuators.

8.

9. Tubing and Fittings: The pilot oil supply kit includes the necessary tubing and fittings to connect the components and route the hydraulic oil to the pilot-controlled valves or actuators.

10.

Some reference drawing oil pilot oil supply manifolds:

Sample 1

Sample 2

Product real pictures :

Company Exhibitions:

Our Certificate:

Product processing procedures:

Our new factory and workshop :

Our warehouse:

Shipment:

Different Series of Product , more details please contact us directly:

Hydraulic valves:

Welcome your visit and inquiry !
