Product Pictures:

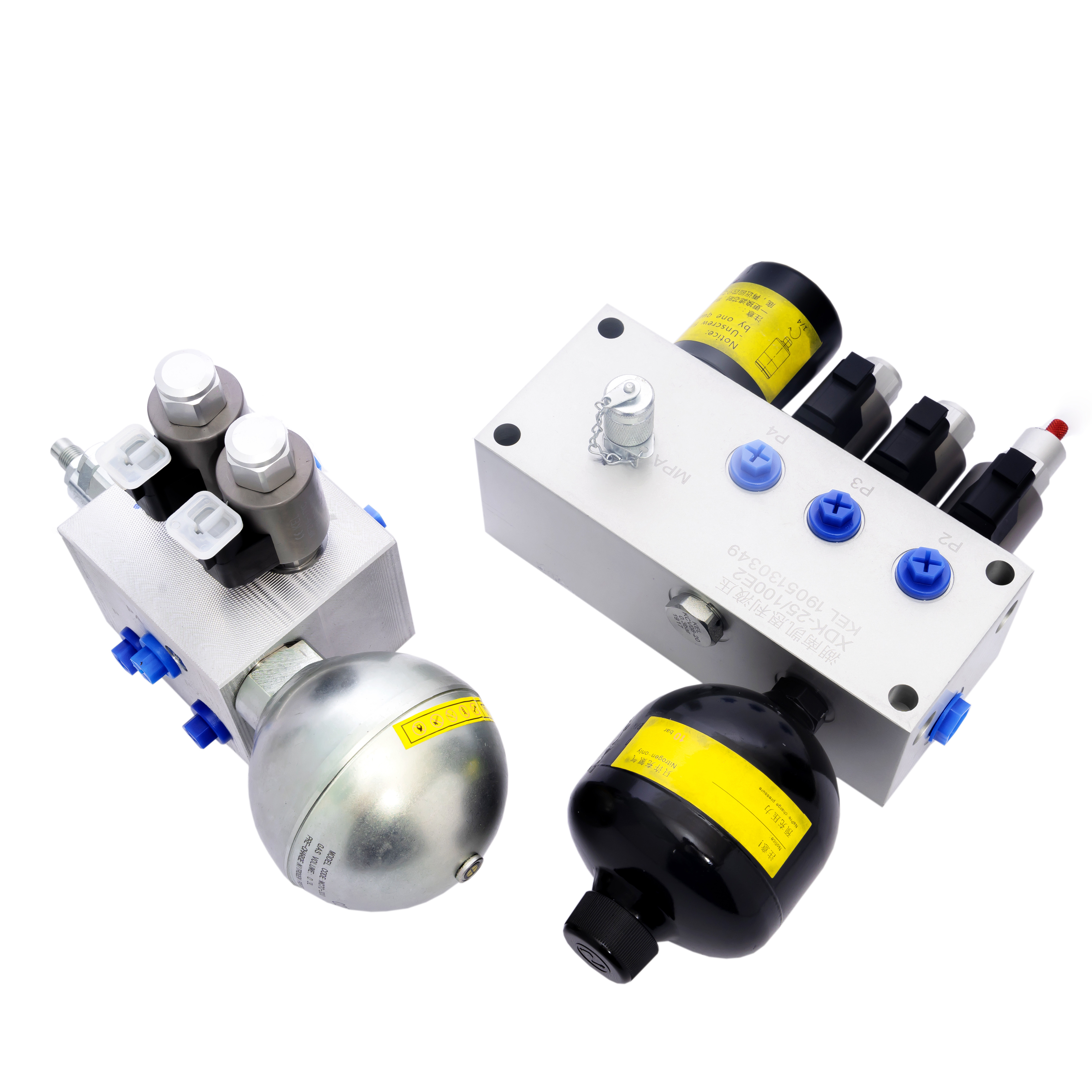

Excavator pilot valve with hydraulic valve body / diaphragm accumulator pilot oil supply valve kit
A hydraulic pilot oil kit, also known as a pilot oil control kit or pilot oil system, is a set of components used to control and operate hydraulic valves remotely. It typically includes various elements that enable the transmission of hydraulic pilot pressure from a control station to the valves located at a distance.
The purpose of a hydraulic pilot oil resource valve is to regulate the flow of hydraulic fluid in response to changes in pressure. It consists of a main valve and a pilot valve. The pilot valve is typically connected to a remote control pressure source, often referred to as a pilot line or pilot port.
Pilot-operated valves are pressure relief valves that control the main valve's inlet and outlet port. They are similar to spring-loaded valves but are the best alternative solution for reaching the highest pressure and highest capacity. These valves offer excellent performance for overpressure protection.
The hydraulic pilot oil resource valve is commonly used in various hydraulic systems, such as hydraulic power units, industrial machinery, and mobile equipment. It helps protect the system from overpressure, preventing damage to components and ensuring safe operation.
This series of pilot valves is mainly used for the control oil line of a hydraulic system and enable control oil with low flow and pressure to control the output pressure of pilot oil so as to meet the requirement on working conditions of the system.
Some reference drawing oil pilot oil supply manifolds:
Sample 1
Sample 2
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
