ODM aluminum hydraulic manifold block cartridge Valve Manifold Block

1 pieces
MOQ
USD 30-200 per piece (depends on the different types )
Price
ODM aluminum hydraulic manifold block cartridge Valve Manifold Block
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Hydraulic Valve Manifolds
Rated Pressure: 350bar / 210bar
Maximum Peak Pressure: 35Mpa/ 21MPa
Valve Type 1: Solenoid Valve
Valve Type 2: Cartridge Pressure Reducing Valve
Valve Type 3: Relief Valve
Valve Type 4: Proportional Valve Or Accroding To Application
Rated Flow Rate: 20-60L/Min Or As Requested
Threaded Interface: G1/4 SAE4-JIS B 1/4 Ports: G1/4 SAE4-JIS B 1/4
OEM ODM: Supported
Highlight:

ODM Aluminum Hydraulic Manifold Block

,

Aluminum Hydraulic Manifold Block

,

Cartridge Valve Manifold Block
Basic Infomation
Place of Origin: China
Brand Name: Kaienli
Model Number: customized valve manifolds
Payment & Shipping Terms
Packaging Details: Plastic film+PE bag+mesh packaging sleeve+sponge spacer+cardboard box+pallet
Delivery Time: 2 or 3 weeks, depends on quantity and design
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: usually about 2 weeks, depends on which type and the quantity demand
Product Description

Product Pictures:

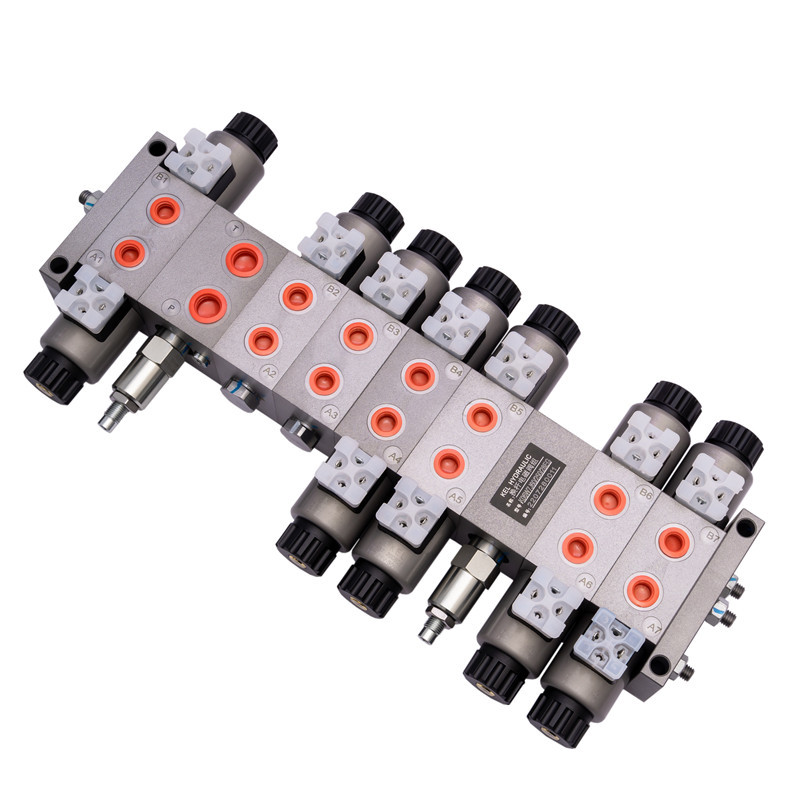

Hydraulic valve manifolds for heavy machiner using functional valve block with solenoid valve and cartridge valve



Description :



What is a Hydraulic Manifold?

A hydraulic manifold is a component within a hydraulic system used to regulate the flow of fluid which in turn controls the transfer of power between actuators, pumps and other components. The flow of pressurised fluid is controlled by hydraulic valves and directed to a working device such as a hydraulic cylinder or motor.

Energy Saving Manifold Design

Hydraulic manifold design has become increasingly important as the demand for reducing energy costs and improving efficiency continues to rise. Our skilled design engineers are experts in manifold design and can create systems to meet these demands. Optimised circuitry provides benefits in terms of reduced pressure drop and reduced heat generation, while reductions in weight and size aid installation and save space.

With the benefit of a shortened hydraulic flow paths, performance is boosted and machine control functions are enhanced. By reducing the number of hydraulic connections and the improvements to hose routing, hydraulic leakage is also greatly reduced. Our high-quality manifolds incorporate all of these benefits enabling considerable reductions in energy consumption and running cost



ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 0ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 1ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 2ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 3ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 4ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 5ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 6ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 7ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 8



These hydraulic valve manifolds smoothly regulate fluid flow and pressure between pumps, actuators, and other components in a hydraulic system. Multiple line connections at one central location allow the use of essential accessories, such as pressure switches and gauges. Applications include: machine tools, material handling, marine, off-highway equipment, food processing, heavy construction equipment, oil field, and farm equipment.

For technical drawing and data, please contact us





Product real pictures :

ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 9



ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 10

ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 11

ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 12





Company Exhibitions:

ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 13

ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 14







Our Certificate:



ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 15ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 16







Product processing procedures:

ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 17







Our new factory and workshop :

ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 18ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 19ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 20ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 21



Our warehouse:

ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 22





Shipment:

ODM aluminum hydraulic manifold block cartridge Valve Manifold Block 23







Different Series of Product , more details please contact us directly:





Type 1 soloenid valve
Type 2 manual cartridge valve
Type 3 2 way 2 position solenoid valve
Type 4 2 way 6 position solenoid valve
Type 5 2 way 8 position solenoid valve
Type 6 Pilot oil resource valve
Type 7 explosion proof valve
Type 8 balance valve
Type 9 check valve
Type 10 Hydraulic lock
Type 11 Valve manifolds
Type 12 valve block





Welcome your visit and inquiry !
