Plug In 5 Port 3 Way Solenoid Valve Hydraulic 12V / 24V With Double Connector

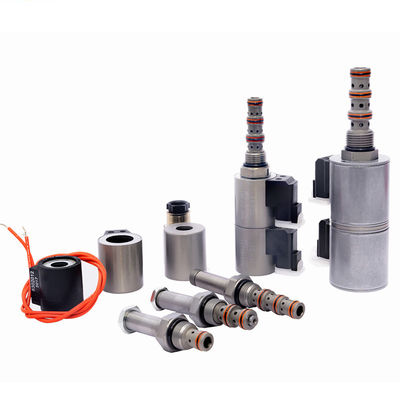

Product Pictures:

KSV08-58C-0-N with double coil ER or DG connector hydraulic solenoid vale of 5 port 3 way plug in valve

Working principle:
When power is cut off, KSV08-58C-0-N stops the flow of oil to any oil port. When coil 1 is energized, the oil can flow from ⑤ to ② and from ④ to ③. When coil 2 is energized, the oil can flow from ⑤ to ④ and from ② to ③. After the valve core moves, load sensing is connected to port ⑤.

Features:
● Rated solenoid coils are suitable for continuous operation.
● The valve core and valve sleeve are hard-treated and durable.
● Optional coil voltage and termination.
● High-efficiency wet armature structure.
● All ports can be fully pressurized.
● Plug-in voltages are interchangeable.
● Emergency manual control option.
● Optional IP69K waterproof E-type coil.
● Integral molded coil design.
● Industrial universal valve hole.

Characteristics:
Working pressure: 247 bar (3625 psi)
Pressure resistance: 350 bar (5075 psi)
Flow rate: At a maximum of 8L/Min and 207 bar (3000 psi), the maximum leakage rate is 164 ml/Min
Temperature range: -40 ℃ to 120 ℃, standard nitrile rubber seal
Rated load of coil: capable of continuous operation within the range of 85% to 115% of rated voltage
Initial current of coil at 20 ℃: Standard coil: 1.2 A at 12 VDC, 115 VAC (full wave rectification)
At 0.13 amps. E-coil: 1.4A at 12 VDC; 0.7 Amps at 24 VDC
Minimum pull-in voltage: 85% of rated value at 207 bar (3000 psi)
Medium: Mineral oil with a viscosity between 7.4 to 420cSt (50 to 2000ssu) or synthetic oil with lubricating properties
Valve hole: VC08-5;
