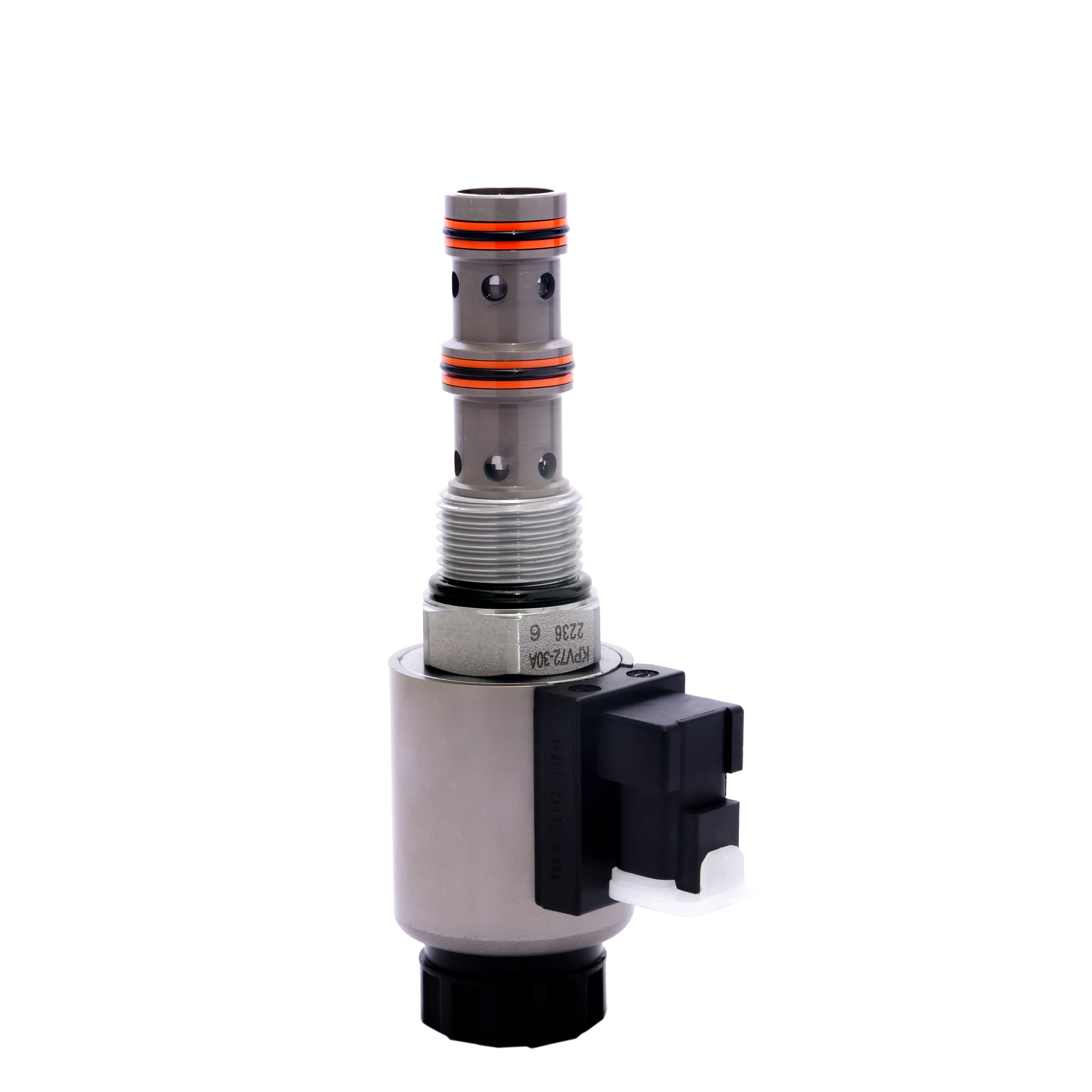

Product Pictures:
Description :
KPV72-31 2 position 3 way VC12-3 cavity hydraforce proportional flow valve and hydraulic solenoid valve
Technical parameters:
1. Working pressure: Oil port ①: 240 bar (3500 psi); Ports ② and ③: 207 bar (3000 psi)
2. Flow regulation in the three-way mode: Range A: 53 lpm (15 gpm) Range B: 38 lpm (10 gpm)
3. Maximum input flow rate in three-way mode: Range A and B: 114 lpm (30 gpm) maximum in two-way mode
Flow rate: Range A: 53 lpm (14 gpm) Range B: 31 lpm (8 gpm) Note: To increase the two-way flow rate
Control the flow rate, refer to KPV72-20 model. Internal leakage: 207 bar (3000 psi) when the valve is fully closed
At pressure, it is 0.38 lpm (0.1 gpm).
4. Electrical characteristics: 2 voltage standards.
5. Medium: Mineral oil with a viscosity between 7.4 to 420cSt (50 to 2000ssu) or synthetic oil with lubricating properties
Electromagnetic drive, variable electrical parameters, three-way, pressure compensation, slide valve type, power off normally closed, proportional flow control valve. It can be used as a priority flow control valve with pressure compensation to regulate and bypass flow. When the bypass circuit (oil port ②) is closed, it can also be used as a 2-way throttling pressure compensation flow control valve.
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
