CV12-20 single way check valve hydraulic directional one way check valve KCV12-20
Description:
Threaded cartridge hydraulic check valve used as one-way stop or load holding device.
Technical parameters:
Working pressure: 350 bar, pressure resistance: 420 bar
Flow: Rated flow: 75L/Min, see performance chart
Internal leakage: at 250 bar,
Maximum 0.10 ml/min (2 drops/min)
Temperature range: -40℃～120℃
Installation torque: 32N.m-34N.m
Valve hole: VC10-2;
Product technical data:

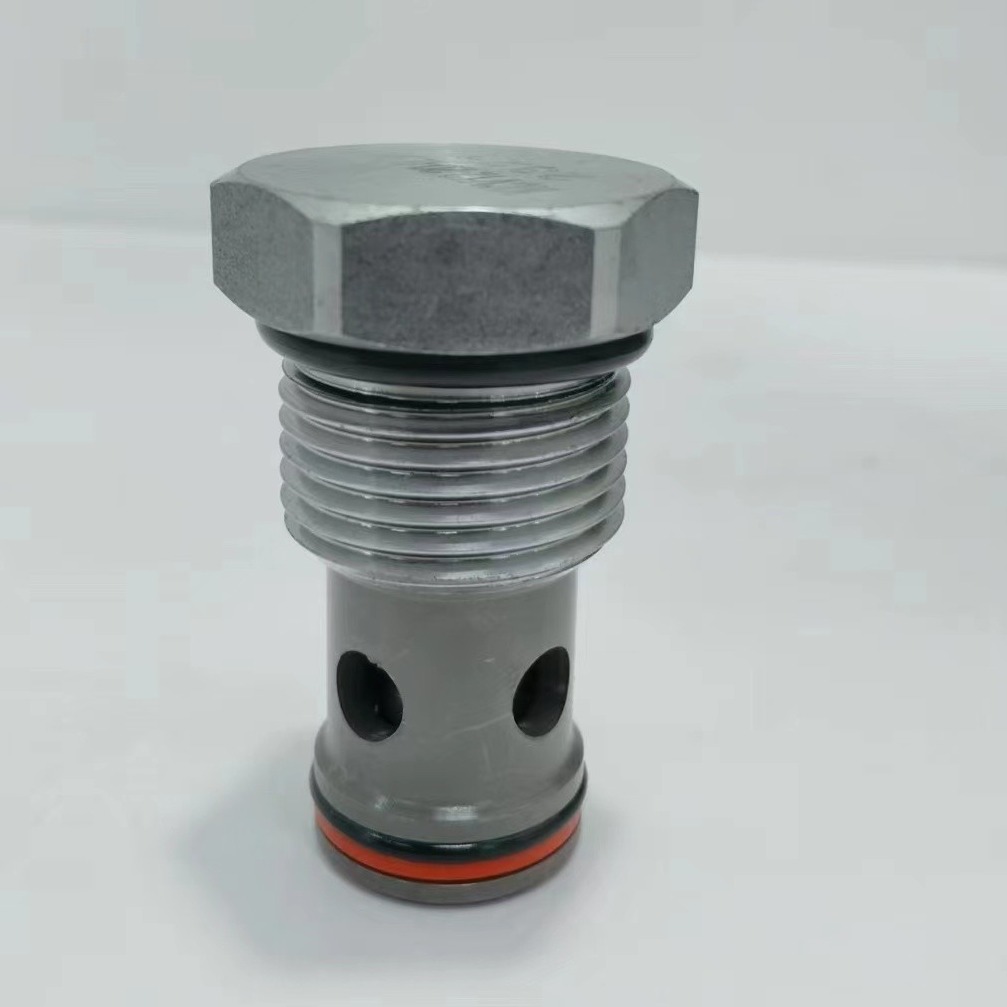

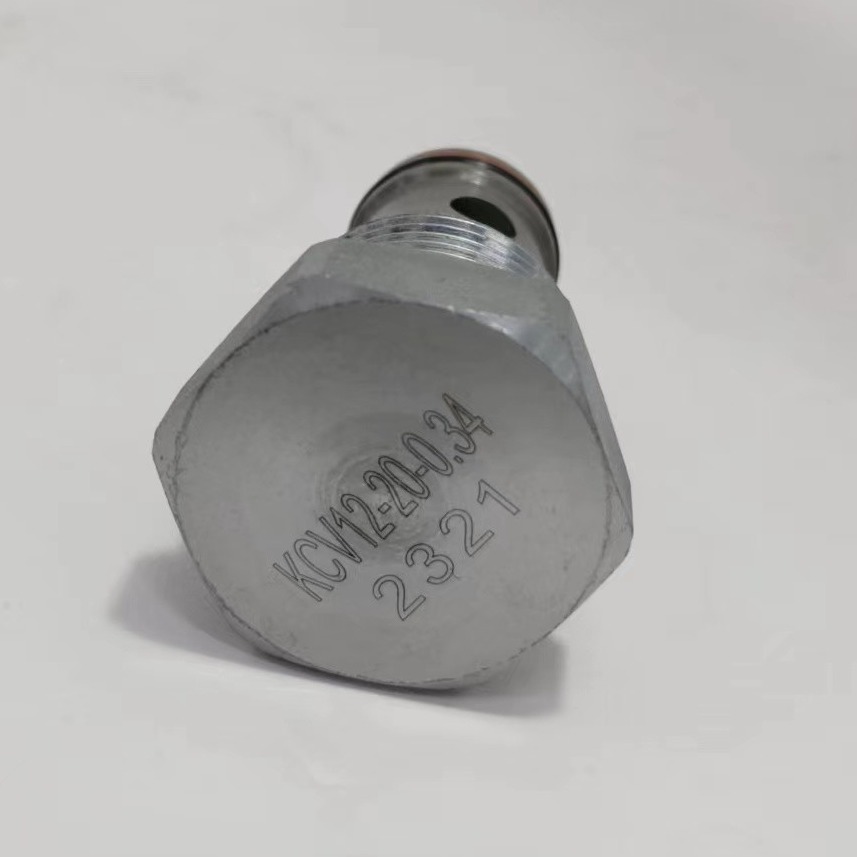

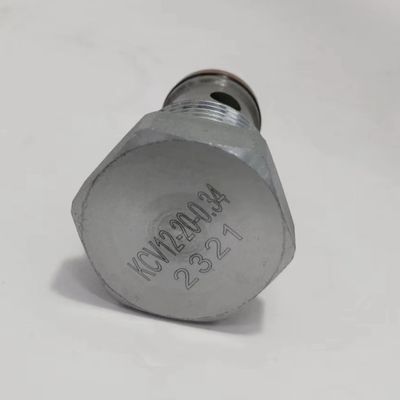

Product real pictures :
Company Exhibitions:
2023 Shanghai PTC AISA exhibition
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
