Customized Pressure Hydraulic Relief Valve 420bar 760lpm With Flow

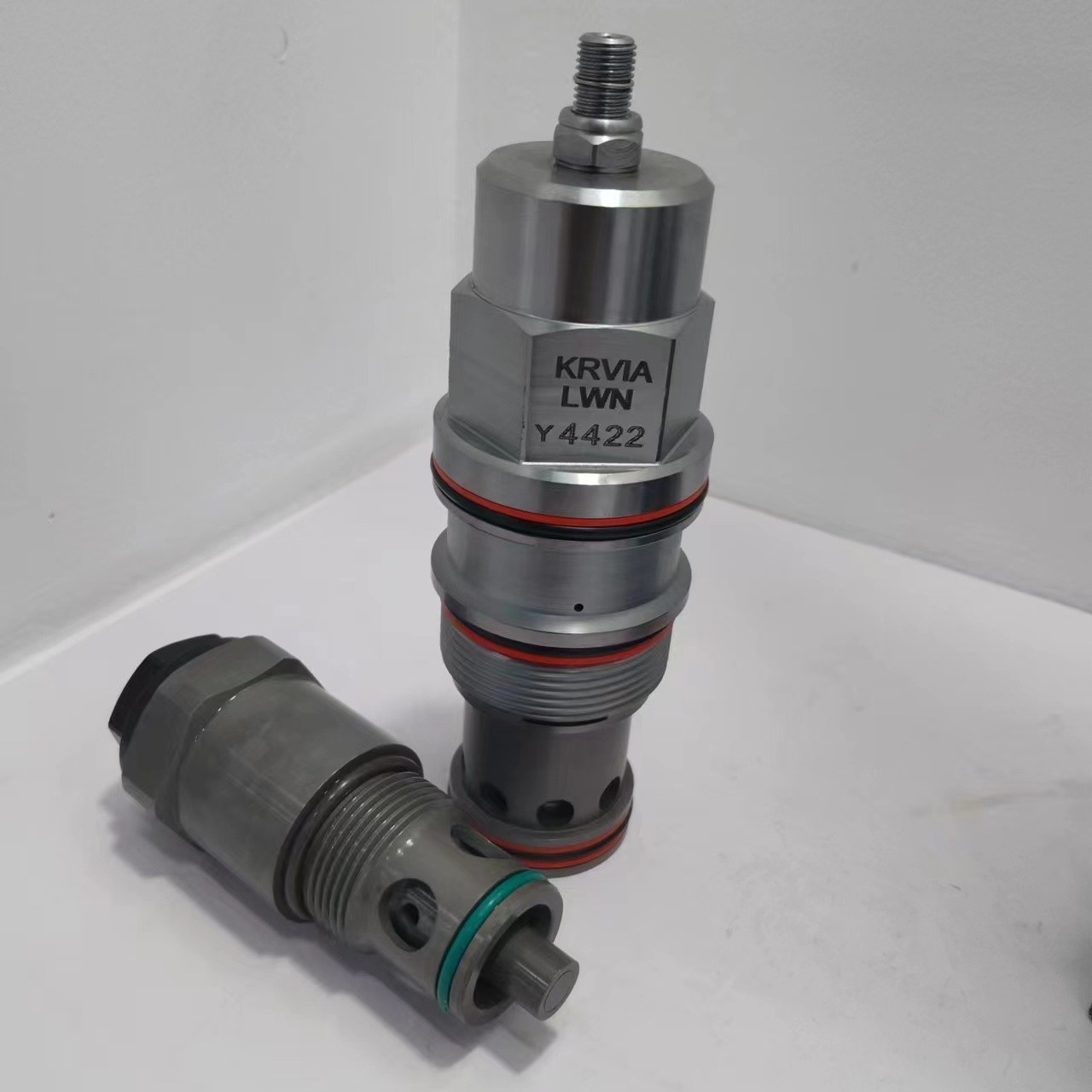

Product Pictures:

KRPKC hydraulic valve with flow 760lpm pressure 420bar customized relief valve

Description:
Threaded plug-in and pilot type remote control overflow valve

Working Principle:
The pilot controlled, balanced slide valve structure overflow valve is a normally closed pressure regulating valve. When the pressure at the inlet (port 1) reaches the set value of the valve, the valve begins to overflow towards the oil tank (port 2), throttling to regulate the pressure. This type of valve has high pressure regulation accuracy, small pressure fluctuations with flow rate, stable regulation, low noise, and moderate response speed

Technical parameters:

Rated pressure: 420 bar
Rated flow rate: 760 lpm
Internal leakage rate: within 200ml/Min at 100 bar for one port
Temperature range: -40 ℃~120 ℃ (standard nitrile rubber seal)
Filter: Within NAS9 level
Medium: Recommended 46 # anti wear hydraulic oil
Weight: 1.18Kg
Installation torque: 474-508N. m
Valve hole: T-18A;

Product technical data:

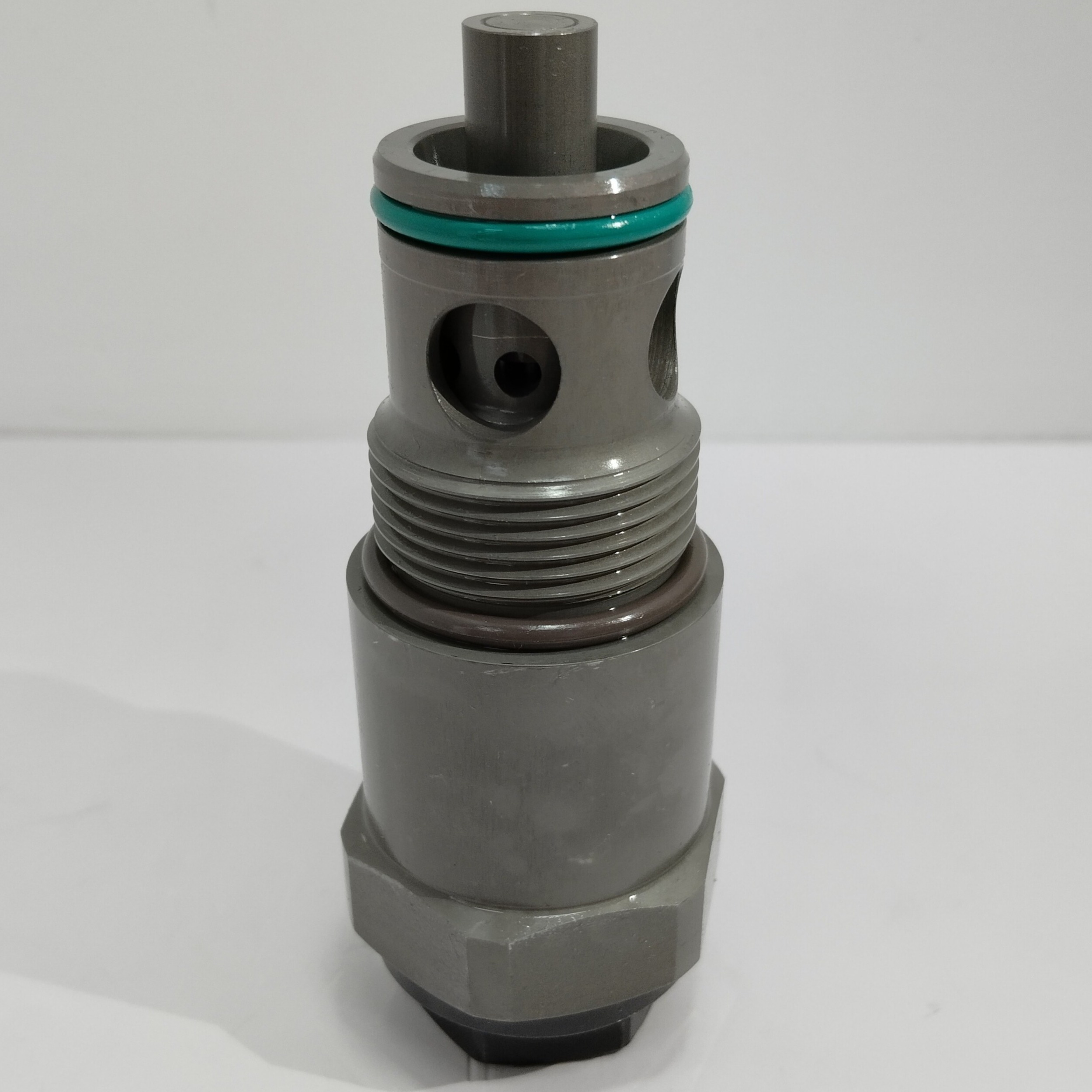

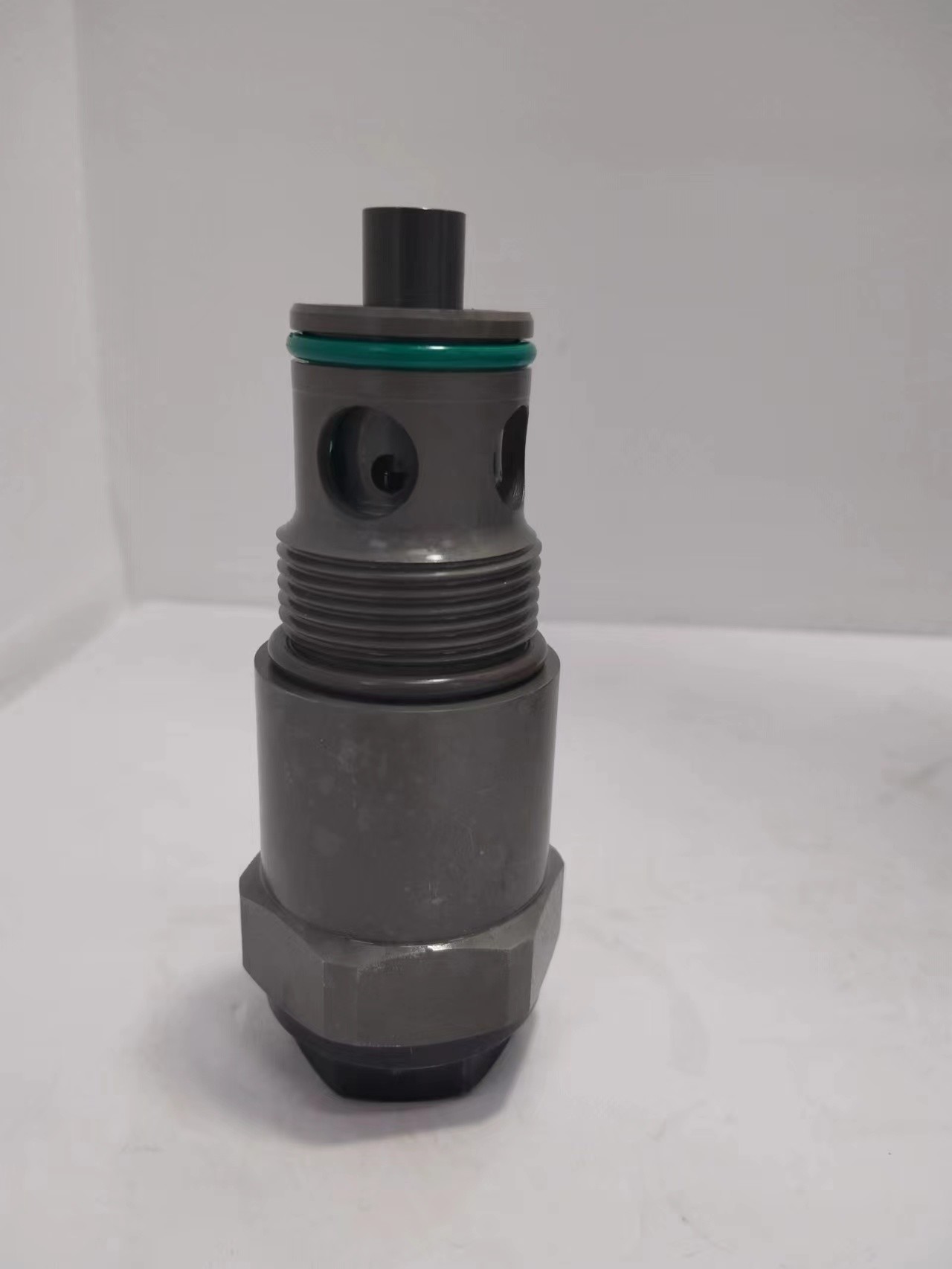

Product real pictures :
