Product Pictures:

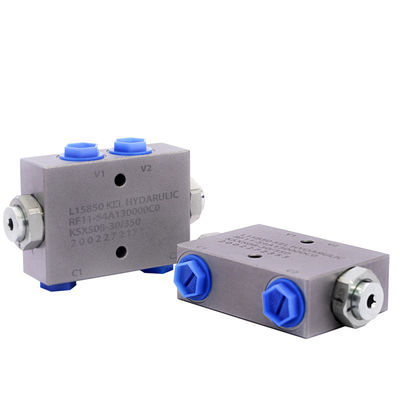

KLCD 3/8DE-A various thread size double pilot operated balance valve with flow 20-180L
The counterbalance valve works by regulating the flow of fluid in both directions, allowing the cylinder to move in a controlled manner. It typically incorporates a pilot-operated design, where the flow through the valve is controlled by a pilot pressure signal. The pilot pressure is generated by the load-induced pressure acting on the opposite side of the cylinder.
1 Function and mode of action A double pilot valve is a bistable way valve¹ which is reversed to a moving switching element by reciprocal signals. After the signal is withdrawn, the double pilot valve's switching position or status is maintained until a counter-signal is received.
When the load-induced pressure exceeds a preset value, the counterbalance valve opens to allow fluid to flow in the cylinder's retract direction. This prevents uncontrolled movement and provides stability by balancing the forces acting on the cylinder.
Overall, the dual cartridge counterbalance valve is a specialized hydraulic valve that provides precise control and stability in applications where loads are subject to external forces. It helps maintain load position and prevent uncontrolled movement by balancing the forces acting on the cylinder.
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
