Home /Products/Cartridge Valves/Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve

1 pieces
MOQ
USD 1- 5 per piece (depends on the different types )
Price
Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: One-way Check Valve
Cavity: VC 06, VC08-2 , CV10,CV12 ,CV16
Rated Pressure: 250 Bar , 350 Bar , 420 Bar
Rated Flow: 30L/Min , 75L/Min , 95L/Min
Working Principle: Single Way Check Valve
Valve Material: Steel
Origin: Chian Mainland
Brand: Kaienli
Surface Treatment: Ntriding Treatment
Highlight:

CV08-20

,

CV08-21
Basic Infomation
Place of Origin: China
Brand Name: Kaienli
Certification: available
Model Number: KCV06-20 KCV 08-20 KCV10-20 KCV 12-20 KCV16-20
Payment & Shipping Terms
Packaging Details: Plastic film+PE bag+mesh packaging sleeve+sponge spacer+cardboard box+pallet
Delivery Time: 2 or 3 weeks, depends on quantity and design
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: usually about 2 weeks, depends on which type and the quantity demand
Product Description

Product Pictures:





Description:

Hydraforce standard CV08-20 CV08-21 one way directional check valve







Technical parameters:
Rated pressure: 350 bar, maximum pressure resistance: 420bar
Flow: 95 lpm max
Internal leakage: 2 ports at 240 bar, maximum 5 drops/minute
Temperature range: -40℃～120℃ (standard nitrile rubber seal)
Filter: Within NAS level 9
Medium: Mineral oil with viscosity between 7.4~420 cSt (50~2000 ssu) or synthetic oil with lubricating effect
Weight: 0.2Kg
Installation torque: 40-42N.m
Valve hole: VC 06, VC08-2 , CV10,CV12 ,CV16

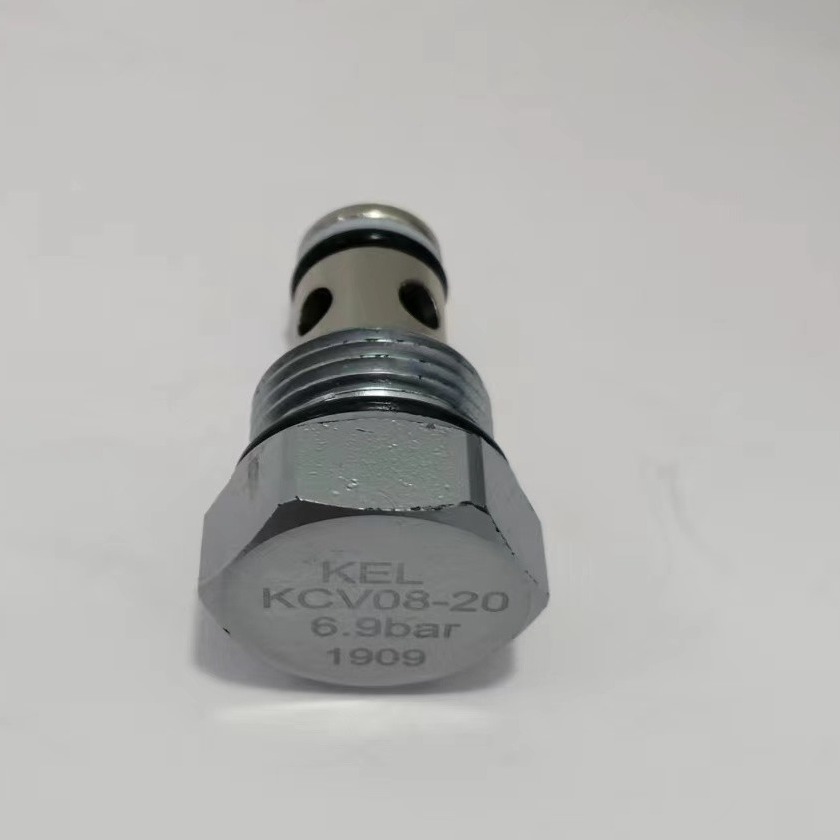

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 0

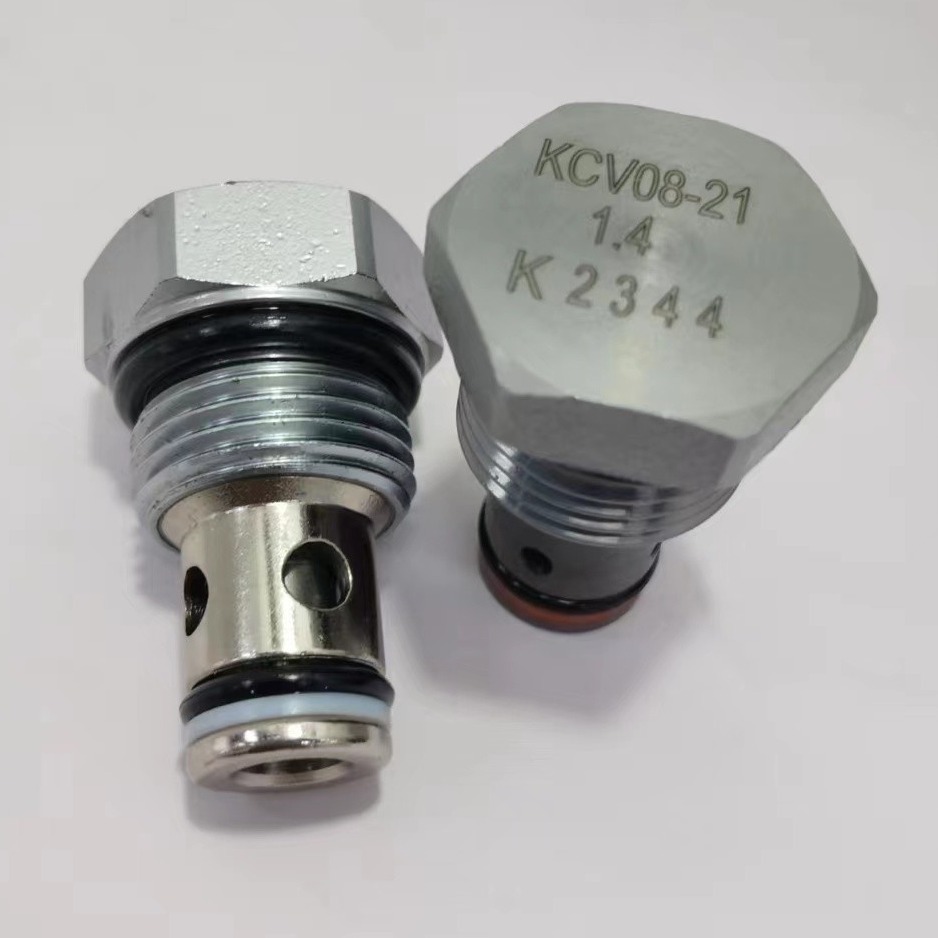

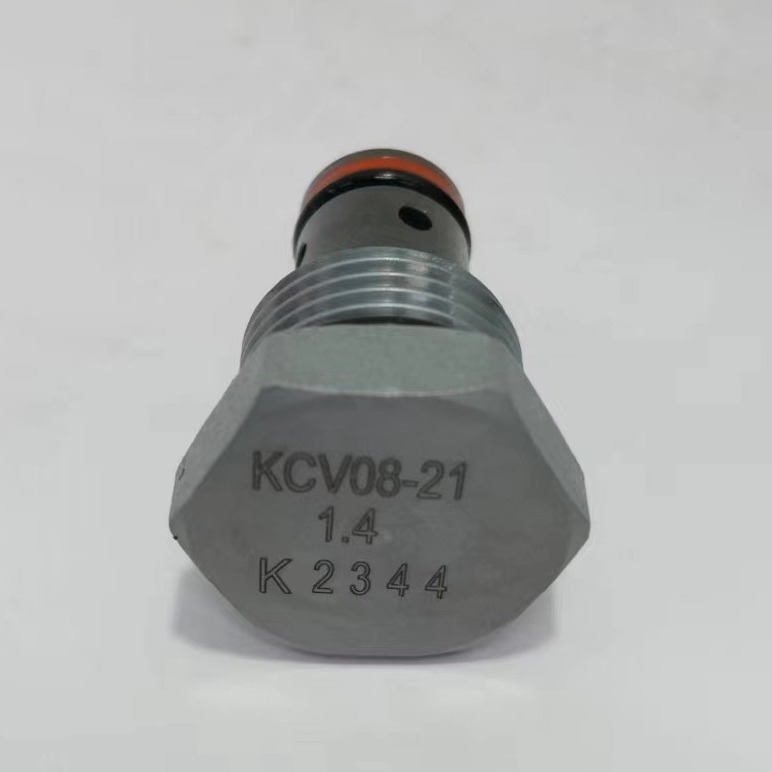

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 1Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 2Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 3Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 4Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 5Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 6Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 7Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 8Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 9

Product technical data:

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 10

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 11Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 12



Product real pictures :

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 13



Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 14

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 15

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 16



Company Exhibitions:

2023 Shanghai PTC AISA exhibition

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 17

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 18







Our Certificate:



Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 19Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 20







Product processing procedures:

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 21







Our new factory and workshop :

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 22Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 23Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 24Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 25



Our warehouse:

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 26





Shipment:

Hydraforce Standard CV08-20 CV08-21 One Way Directional Check Valve 27







Different Series of Product , more details please contact us directly:

Hydraulic valves:



Type 1 soloenid valve
Type 2 manual cartridge valve
Type 3 2 way 2 position solenoid valve
Type 4 2 way 6 position solenoid valve
Type 5 2 way 8 position solenoid valve
Type 6 Pilot oil resource valve
Type 7 explosion proof valve
Type 8 balance valve
Type 9 check valve
Type 10 Hydraulic lock
Type 11 Valve manifolds
Type 12 valve block



Welcome your visit and inquiry !
