Product Pictures:

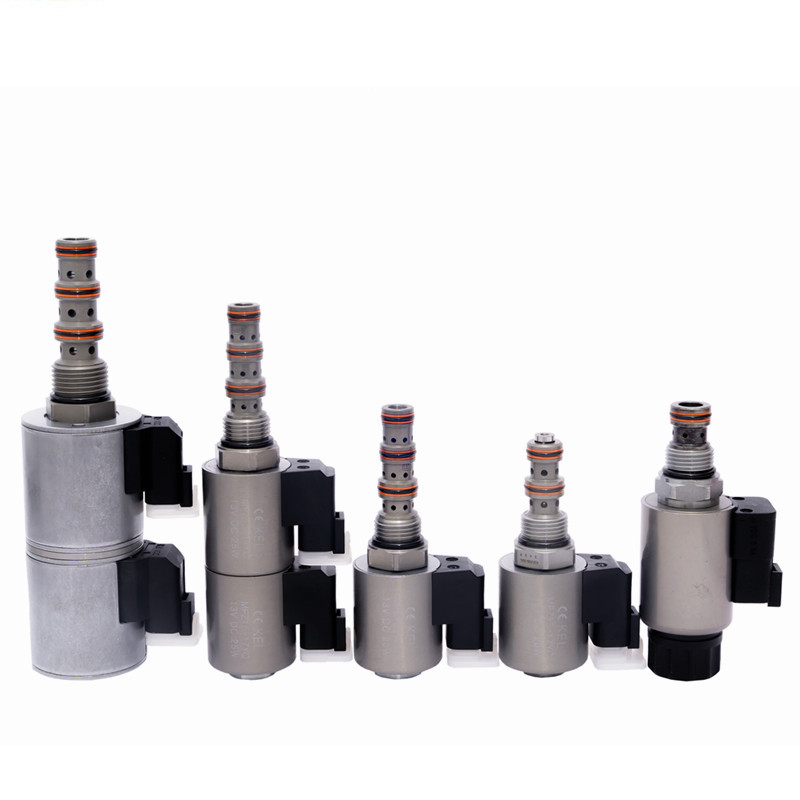

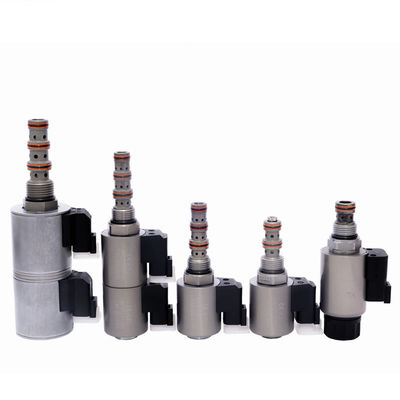

KSV08-35L-0-N cartridge solenoid valve with VC08-3 cavity hydraulic oil control valve
Description: Electromagnetic drive, three-way slide valve, direct acting spool type, hydraulic threaded directional valve
Working principle:
During power outage, KSV08L-30 allows oil to flow from ② to ①, while
③ Stop at. After being powered on, the valve core of the plug-in moves, connecting ③ to ②, and stopping the flow of oil from ①. The oil port ① can be used as an oil inlet, and the pressure cannot exceed 210Bar. Emergency manual control options
Operation method: To perform emergency operations, please press the button and rotate it counterclockwise 180 ° before releasing it. The built-in spring will push the button out. At this position, the valve may only partially move. To ensure complete emergency movement, pull the button to its maximum travel and hold it in this position. To restore normal valve function, press the button and rotate 180 ° clockwise before releasing. The emergency manual control option will be locked in this position.
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
