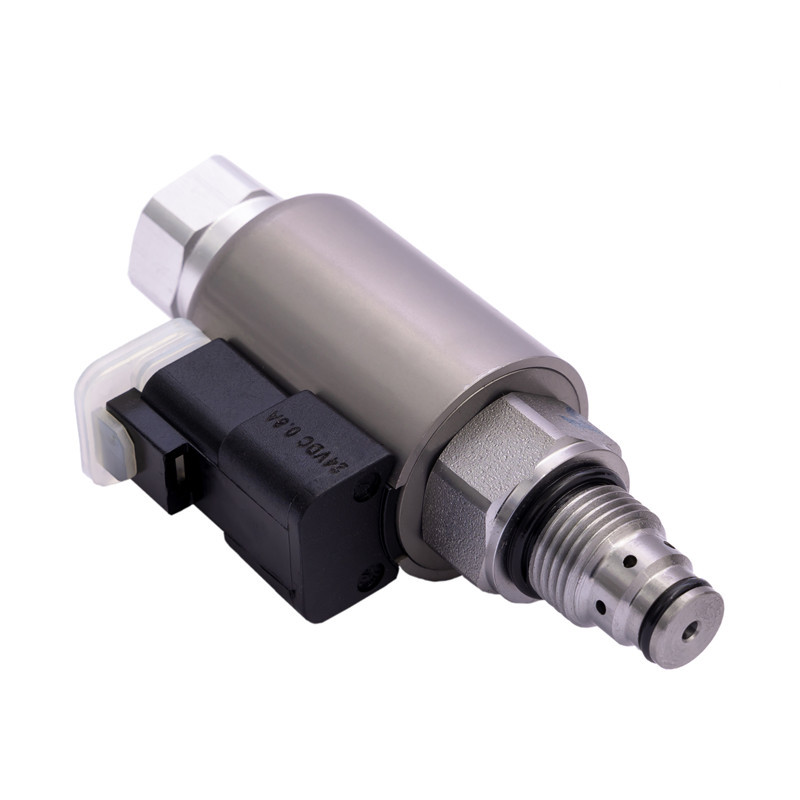

Product Pictures:
Description :
KTS38-20-0-N two position two way hydraulic proportional relief valve
Threaded plug-in, single stage, seat valve pressure relief valve, utilizing variable electric
Input can achieve continuous adjustment within the specified range. Output pressure and DC
The current input is inversely proportional.
Working principle:
KTS38-20-0-N blocks the flow from ① to ② until the oil port ① obtains sufficient pressure to counteract the electromagnetic driving force. If there is no current in the solenoid valve, the oil can freely flow from ① to ②. Note: The back pressure of port ② will be 1:1 superimposed on the set pressure
Characteristics:
The valve core adopts a return oil buffer structure.
During the proportional overflow process, the pressure is stable and there is no shaking or abnormal noise.
Engineering coil, internal waterproof grade IP67K.
High repetition accuracy.
The temperature rise of the coil will not affect the pressure output by more than 6%.
The sealing ring adopts an integrated retaining ring, suitable for repeated disassembly and high pressure resistance.
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
