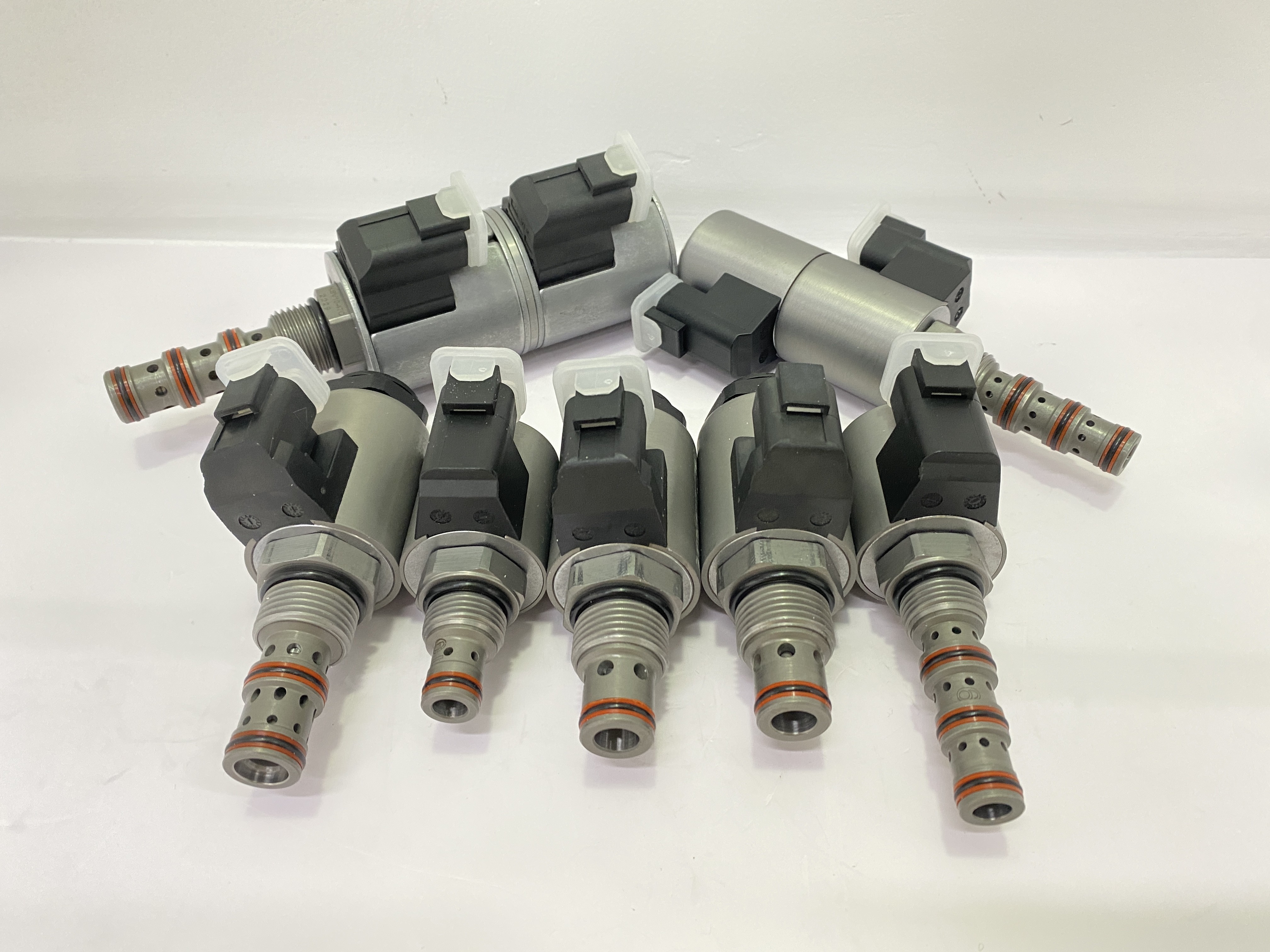

Product Pictures:
KSV08-35L-0-N 3 way 2 position plug in solenoid valve , cartridge type flow control hydraulic solenoid valve
Description:
Electromagnetic drive, three-way slide valve, direct acting spool type, hydraulic threaded directional valve
Characteristics:
Working pressure: 315 bar, maximum pressure resistance of port 1: 210bar
Pressure resistance: 350 bar (5075 psi)
Rated flow: 20 L/Min,
Leakage volume: When the working pressure is 210bar, the leakage volume is within 82ml/Min.
Temperature range: -40°C to 120°C, standard nitrile rubber seal
Coil power: 20W, voltage 12V output current 1.6A, voltage 24V output current 0.8A
Medium: Mineral oil with viscosity between 7.4~420cSt (50~2000ssu) or synthetic oil with lubricating effect
Valve hole: VC08-3;
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
