Product Pictures:

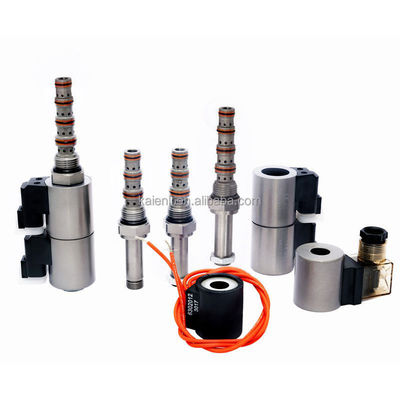

KSV08-47BL-0-N hydraulic solenoid valve with twin connector DIN43650 or DT04-2P threaded cartridge valve
Description: Electromagnetic drive, 3-position 4-way, direct-acting spool type, series center position, hydraulic threaded cartridge valve.
Working principle:
When powered off, the KSV08-47BL-0-N allows oil to flow to all ports. When coil 1 is energized, oil is allowed to flow from ③ to ④, and from ② to ①. When coil 2 is energized, oil can flow from ③ to ②, and from ④ to ①. In the oil circuit where the flow rate of the working oil port is unbalanced due to the area ratio of the oil cylinder, the return oil with a larger flow rate should be directed into the oil port ②. Although port ① can be fully pressurized, it is not used as the valve inlet. How to operate the emergency hand control option: During emergency operation, push the knurled handle to control the function of coil 2 (S2), or pull the knurled handle to control the function of coil 1 (S1).
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
