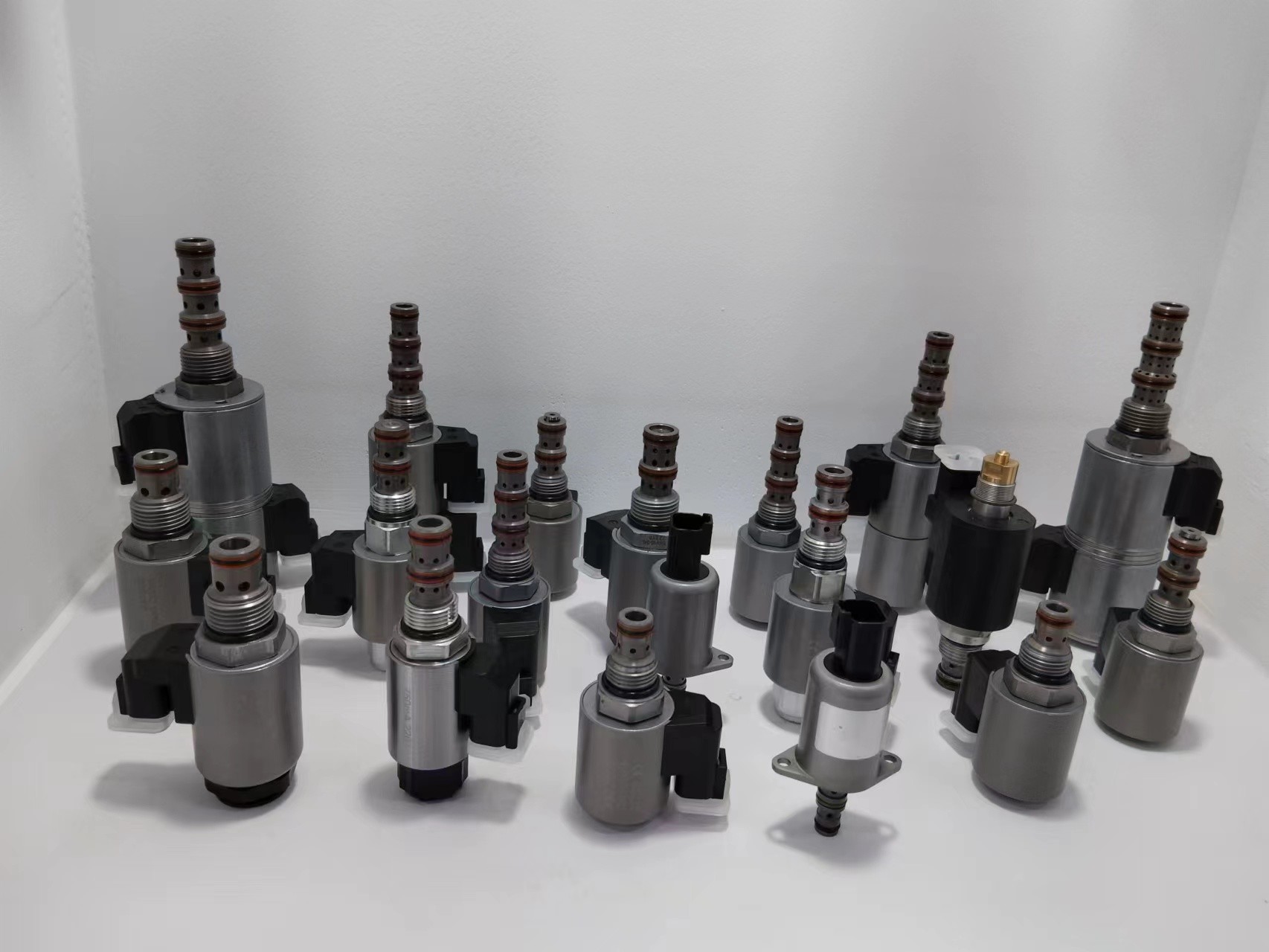

Product Pictures:
KSV10-47DL-0-N Plug in 4 way 3 position hydraulic standard VC10 cavity could instead of hydraforce valve
Working principle:
When power is off, KSV10-47DL-0-N prevents oil from flowing to ③, but allows oil to flow from ② to ①, or from ④ to ①. When coil 1 is energized, it allows oil to flow from ③ to ④, and from ② to ①. When coil 2 is energized, oil can flow from ③ to ②, and from ④ to ①. In the oil circuit where the flow rate of the working oil port is unbalanced due to the area ratio of the oil cylinder, the return oil with a larger flow rate should be directed into the oil port ②. Although port ① can be fully pressurized, it is not used as the valve inlet. How to operate the emergency hand control option: During emergency operation, push the knurled handle to control the function of coil 2 (S2), or pull the knurled handle to control the function of coil 1 (S1).
Features:
● Continuously work with power at ambient temperature +90℃.
● No stagnation at low temperature -40℃.
●Wide voltage: ±20% of rated voltage.
● The exposed surface is plated with new nickel alloy.
● All ports can be fully pressurized.
● Plug-in voltages are interchangeable.
● Emergency manual control option.
● The inside of the coil is IP67K waterproof and can be flushed with water.
● Integral molded coil design.
● Industrial universal valve hole.
Characteristics:
Rated pressure: 315 bar, maximum pressure of 1 port is 210Bar,
Rated flow: 22.7L/Min
Leakage volume: 164 ml/Min maximum at 210 bar
Temperature range: -40°C to 120°C, standard nitrile rubber seal
Coil rated load: Continuous operation within 80% to 120% of rated voltage range
Coil initial current at 20°C: Type E coil: 1.5 A at 12 VDC; 0.75 A at 24 VDC
Minimum pick-up voltage: 70% of rated value at 315 bar
Medium: Mineral oil with viscosity between 7.4~420cSt (50~2000ssu) or synthetic oil with lubricating effect
Ferrule weight: 0.33Kg, single coil weight: 0.43Kg
Installation torque: maximum 34Nm, installation hexagon: S27
Valve hole: VC10-4;
